SSEM Figs. 3 - 8

The figures below, from the 1951 I.E.E. paper on the SSEM, are reproduced by permission of the Institution of Electrical Engineers

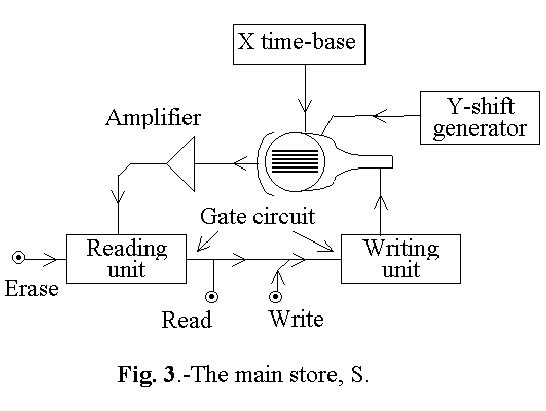

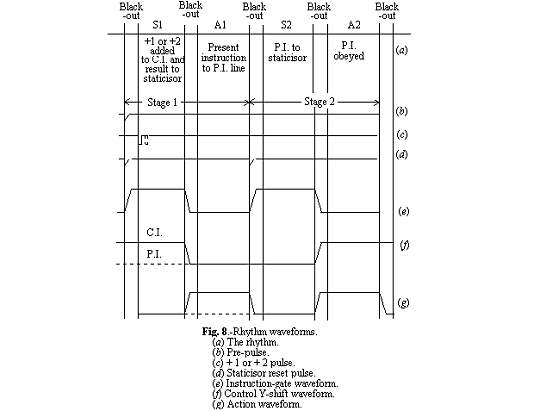

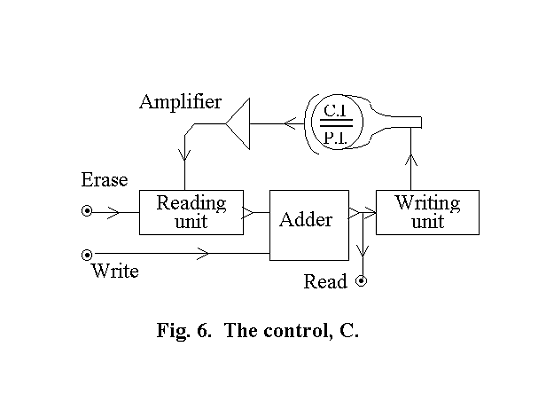

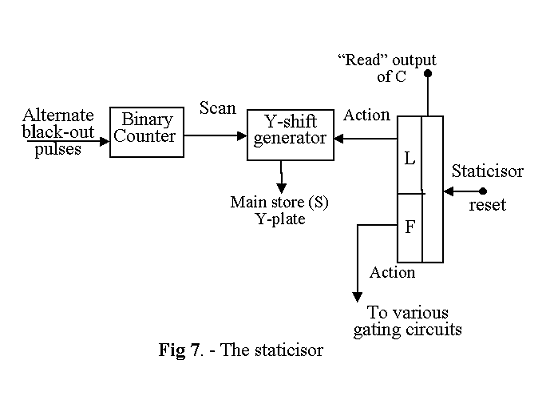

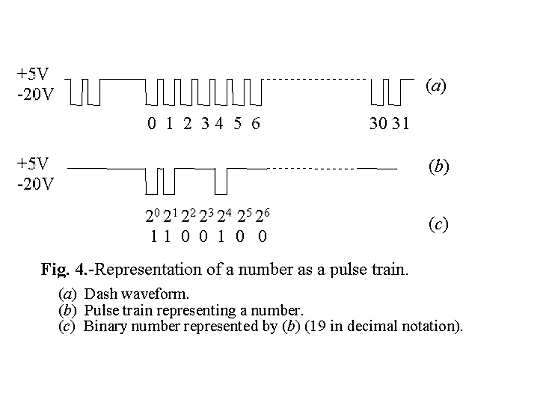

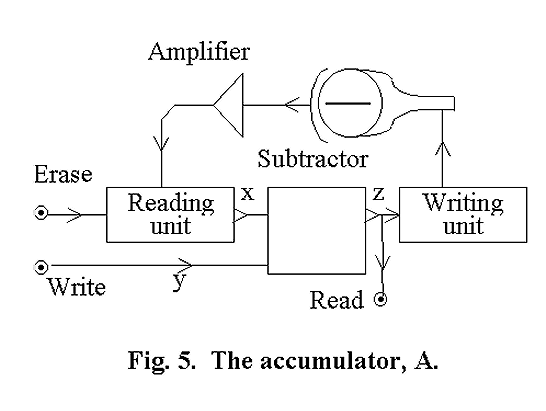

Fig. 3. The main store, S. Fig. 4. Representation of a number as a pulse train Fig. 5. The accumulator, A Fig.6. The control, C Fig.7. The staticisor Fig. 8.Rythm waveforms

\
