The figures below, from the 1951 I.E.E. paper on the SSEM, are reproduced by permission of the Institution of Electrical Engineers

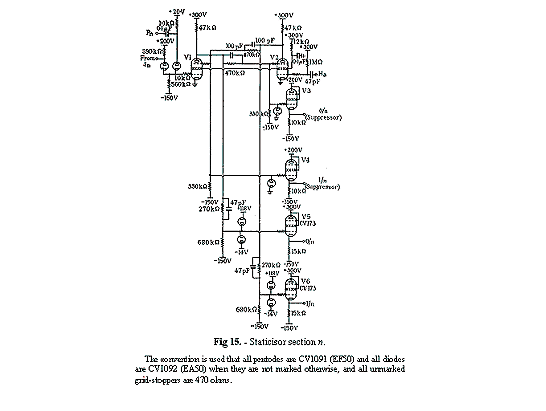

Fig.15. Staticisor section n

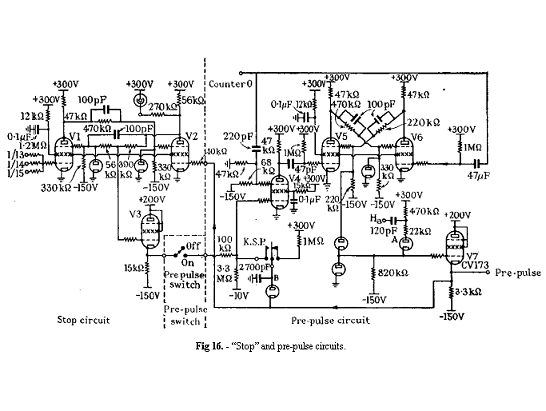

Fig.16. "Stop" and the pre-pulse circuits

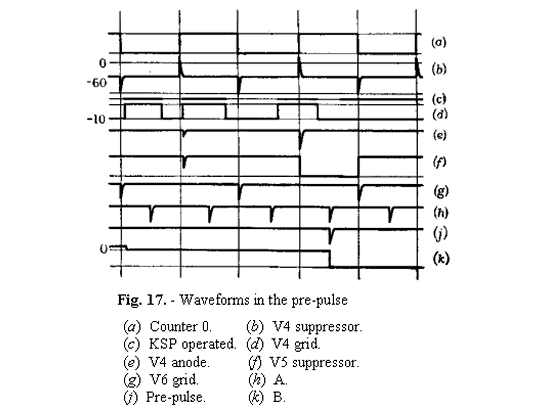

Fig.17. Waveforms in the pre-pulse




\
