SSEM Figs. 18 - 22

The figures below, from the 1951 I.E.E. paper on the SSEM, are reproduced by permission of the Institution of Electrical Engineers

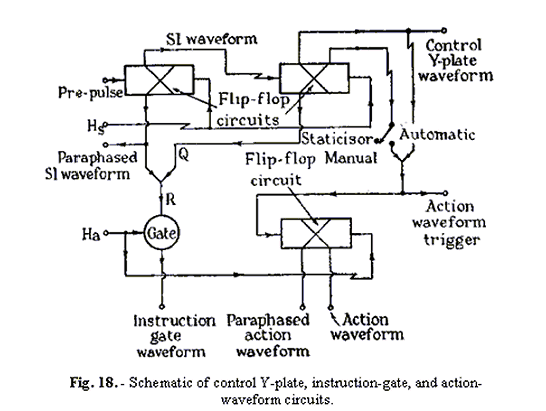

Fig.18. Schematic of control Y-plate, instruction-gate, and action-waveform circuits.

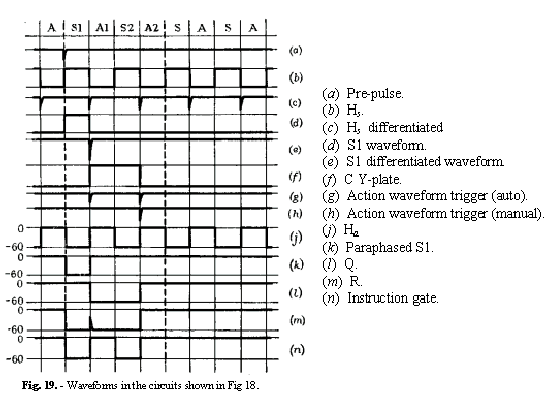

Fig.19. Waveforms in the circuits shown in Fig.18.

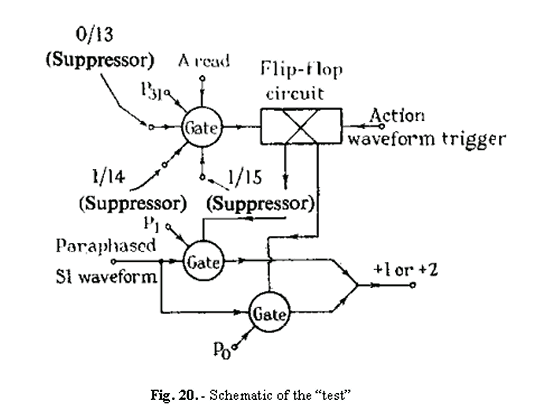

Fig.20. Schematic of the "test"

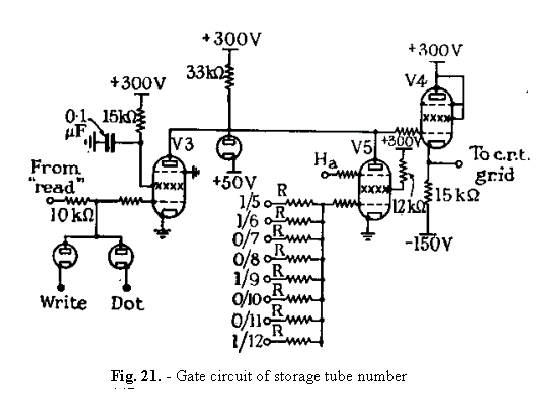

Fig. 21. Gate circuit of storage tube number

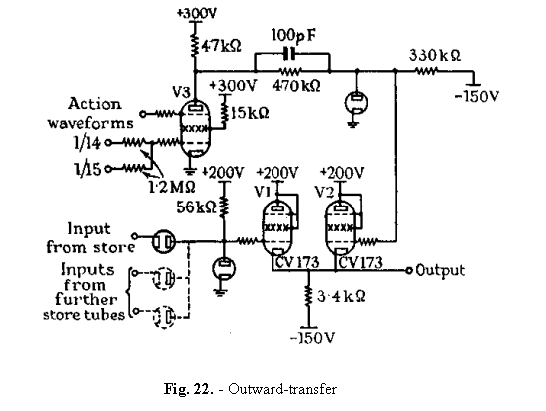

Fig.22. Outward-transfer




\
